Fire Rated Bezel Interchanbeable IP65 Led Downlight For Bathroom
Lighting
It's waterproof IP65 downlight for bathroom lighting or
corridor/roof lighting. It passed 30/60/90 minutes fire rated
testing,so we call it fire rated downlight. Also the downlight
bezel can be interchangeable and you can choose different colors
such as brushed nickel,white,chrome,brass,black,gold etc; Meanwhile
the downlight is dimmable with triac/1-10V/DALI as you require. Our
downlight driver is with loop in and loop out quick connect
terminal. our LED Lens is own moulded by PMMA with high light
transmittence and the downlight's heating sink is die casting
aluminum.
Our downlight is 5 years warranty with lifetime of 40,000 hours.
TECHNICAL DATA
| Voltage | 220~240V | Wattage | 8W LED |
| COB | Luminus/Bridgelux/Cree | Lumen | >640lm |
| Beam Angle | 40 | CRI | Ra>80 (Ra> 90 available) |
| Color Temperature | 2700K/3000K/4000K/5000K | Driver | dimmable/nondimmable |
| PF | >0.9 | Dimmable | Triac/1-10V/Dali |
| IP Rating | IP65 | Life span | 40,000 hrs |
| Guarantee | 5 years | | |
DIMENSION
| Diameter | 84mm | Height | 56mm |
| Cut out | Φ69mm | | |
COMPONENT
| Material | Die-cast aluminum | Color | White, Brush Nickel,Brass Black,Chrome |
Features:

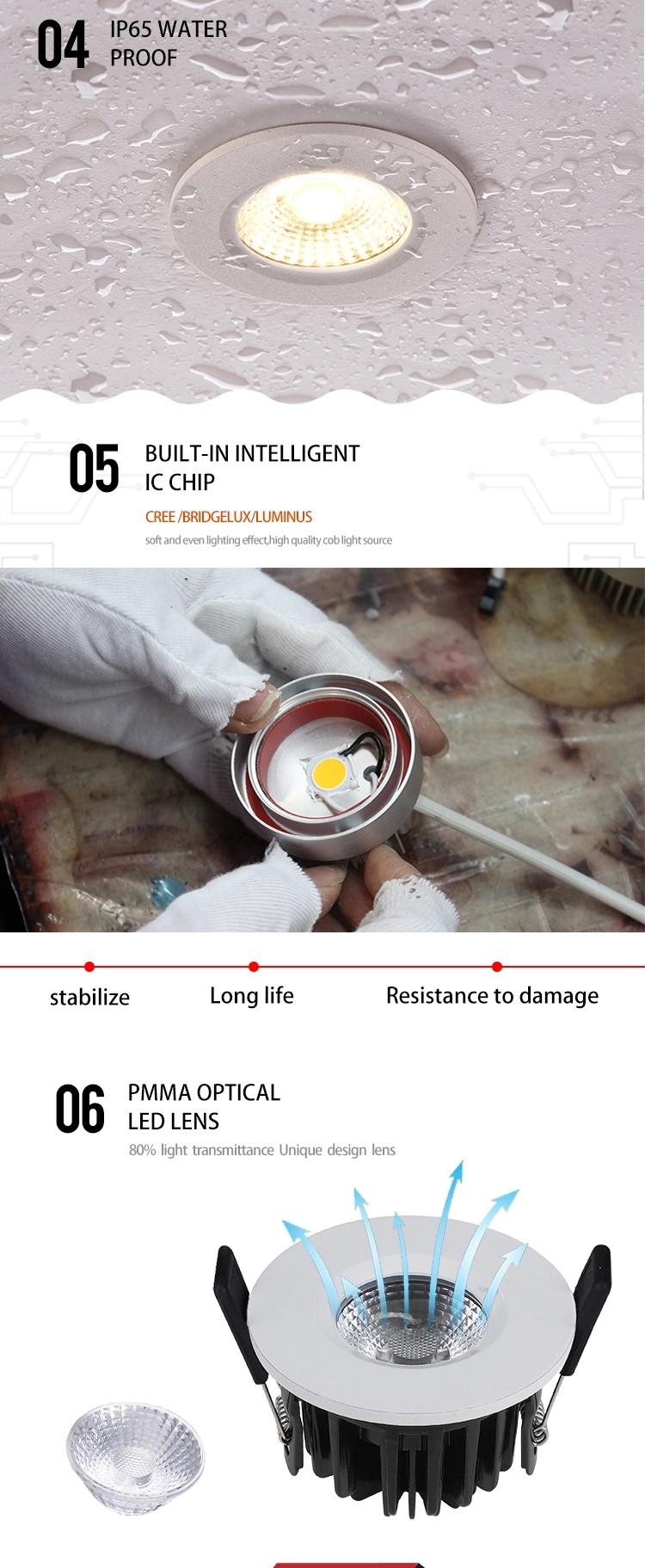

1. The downlight bezel part can be IP65 waterproof for bathroom
lighting;
2. Downlight Bezel Interchangeable,the color can be white,brushed
nickel,chrome,black,brass;
3. The downlight can be fire rated 30 minutes/60 minutes/90
minutes;
4. The downlight can be triac/1-10V/DALI dimmable;
5. LED Lens is own moulded by PMMA with high lighting
transmittence;
6. Downlight Heating Sink Material is Aluminum;
7. Downlight warranty is 5 years with lifespan of 40,000 hours.
FAQ
| Do you have the authority testing report for this IP65 downlight? |
| Yes, SGS testing report is available |
| What about the lead time? |
| The lead time of Recessed LED Downlight sample is 5-7 days, The
delivery time of regular order is 30-45 days. |
| Do you have any MOQ limit for Downlight order? |
| Yes, the MOQ limit is according to different items. Exact MOQ will
be showed in quotation. |
|
